Locking Units

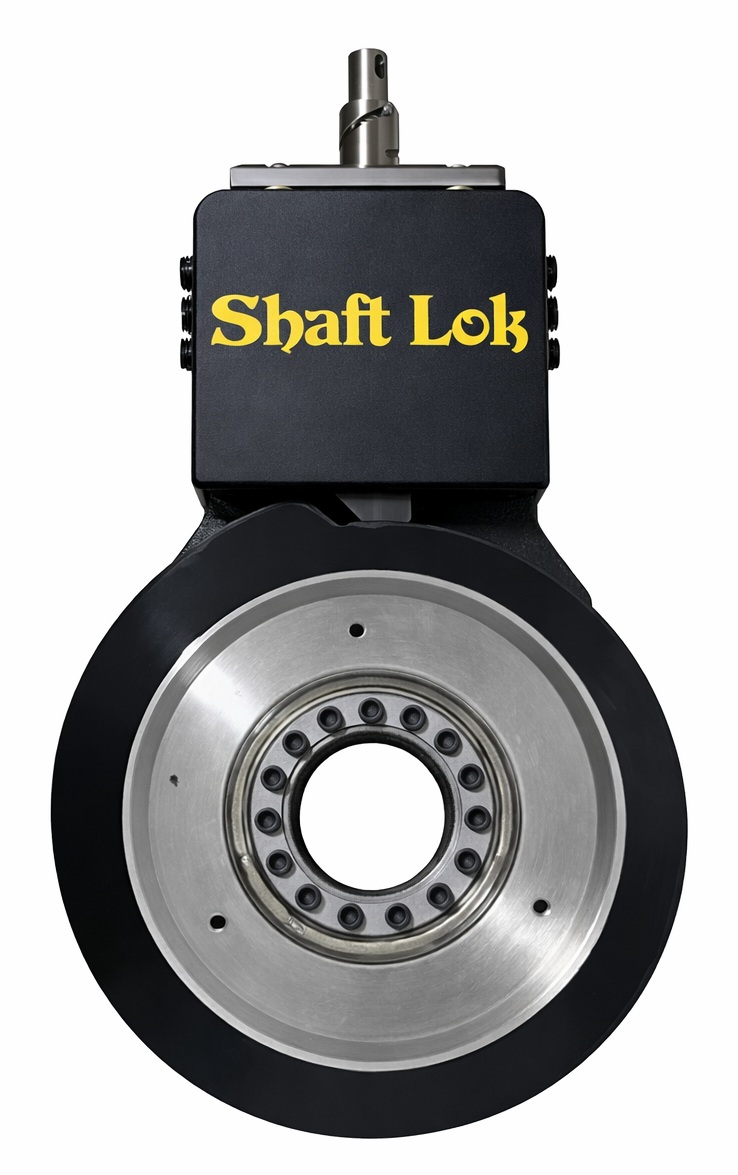

Mod VI
Built for large motor vessels where safe single-engine transit protects the transmission.
Max Bore Size
6.5" (165.1mm)
Category
Locking Units
Details
The Mod VI utilizes state-of-the-art locking technology specifically designed for large motor vessels and restored schooners. These advanced systems allow captains to safely shut down one engine during transit to increase fuel efficiency and range without risking transmission damage from a freewheeling propeller.
- Max Bore Size: 6.5" (165.1mm)
- Dimensions: 29.875" (758.825mm) length; 10.250" (260.35mm) width at the spring adjustment screw
- Housing: Durable marine urethane
- Shaft collar: Precision-machined metal
- Rotating disc: 20.250" precision-machined marine urethane
- Custom engineering: Multiple standard short pins and sophisticated locking pin systems to manage the massive static torque generated by large-scale yachts
- Ordering: Custom-built systems — submit your vessel details, including name and contact information, for custom pricing and delivery schedules
